Arch 111_ as11
Poster design for a 3d chair model we previously made with iRhino
Arch 101 _ as07
Step 4 diagrams
Arch 101 _ as07
Step 2
Animation of the model using clipping plane.
MT1 _ bonus
We made a 3D model for the orthographic projection we drew on the mid term.
Arch 111 _ as08
Axonometric drawing
(un completed)
Arch 101 _ as07
Step 3
Low resolution scaled down group model.
Step 4
revise step 3.
Arch 101 _ as07
Step 1
volumes within volumes
material used : oasis
step 2
combine my model with my friend.
Juri 1 catalog that shows
development
set of operations
intersection
strategise
elements
Arch 101 _ juri 1
arch 111 _ as07

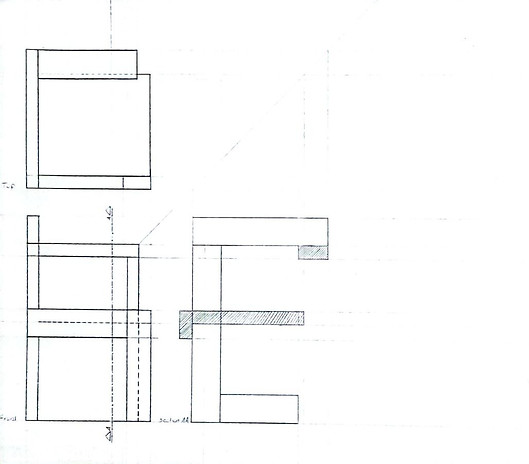

23F_Arch111_MT1
PROBLEM
- You are expected to produce an orthographic set that si composed of 3 different (top - front - side) views of the given geometry.
nov 2023
Arch 111 _ AS06
orthographic projection
sectioning
Arch 111 _ AS05
Step 2 :
In the top view, rotate the object 30° clockwise and reproduce the orthographic set.
Arch 111 _ AS05
Step 1 :
Orthographic projection
nov 2023
Arch 101 _ AS04
Start with producing the design elements listed above. Using the squares and strips*, you will be producing a 3D construct which defines a series of well defined volumes with the greatest complexity you can achieve. You will be applying the Intersect & cut & fold operations to squares and strips.
given design elements:
strip1_ 3aX11a
strip2_aX7a
square_2aX2a
a≥5 cm
Oct 2023
Arch 101 _ AS03
Step 2 :
You will produce the 3D construct below, which composed of two intersecting planes. One of the planes should be a square (15X15 cm) and the other is a rectangle (12 X 28 cm).
Arch 101 _ AS03
​
Step 3 :
You are expected to apply the set of operations (you identified in the firststep) to the 3D construct you
produced in the second step.
​
​
Arch 101 _ AS03
Step 1 :
You are expected to take 2 photos of the same scene (with exactly the same angle and frame) which records different shade-shadow conditions. The photos should be black and white.
​
Oct 2023
Arch 111 _ AS04
Objective: regulating lines, outlines, color, image overlap, background & foreground, text and image, alignment, balance, scale, hierarchy
​
Problem: You are expected to design a digital poster for the final exhibition of ARCH 101 course which will be shared on digital platforms.
Arch 111 _ AS03
Orthographic projection
Oct 2023
Arch 101 _ AS02
This assignment builds upon your previous work in layering the facade(arch 101_AS01). Now, you will translate your analysis into a 3D construct/model.
Oct 2023
Arch 111 _ AS02
Abstraction
Oct 2023
Arch 111 _ AS01
We went to CSO to take some pictures then we were expected to meke some sketches .
​
